Q-Band Waveguide Components
Circular Waveguides
Precision circular waveguide assemblies manufactured for high-frequency RF and millimeter-wave applications. Available in silver-plated and brass configurations.
Available Configurations
Circular Waveguide Finishes
Silver-Plated Circular Waveguide
Precision-machined circular waveguide with conductive silver-plated surfaces for low-loss millimeter-wave signal transmission.
- Material
- Silver-Plated Metal
- Test Range
- 32.9–50.1 GHz
- S21
- Approx. -0.04 to -0.09 dB
- Measurement
- 2-Port VNA
Brass Circular Waveguide
Precision-machined brass circular waveguide designed for laboratory, development, integration, and high-frequency RF applications.
- Material
- Brass
- Band
- Q-Band
- Interface
- Circular Waveguide
- Availability
- Contact for Quote
Measured Performance

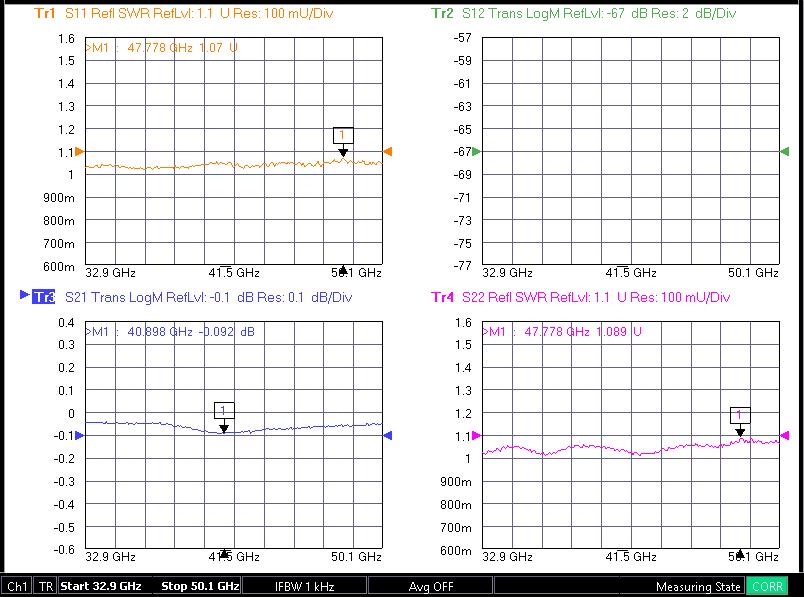

Vector Network Analyzer Data
Representative two-port VNA characterization of the silver-plated circular waveguide assembly across the supplied Q-band measurement range.
Typical Applications
Need a custom waveguide configuration?
Contact MetaRadiant RF for dimensions, flange configurations, finishes, frequency requirements, custom manufacturing, and volume requirements.
